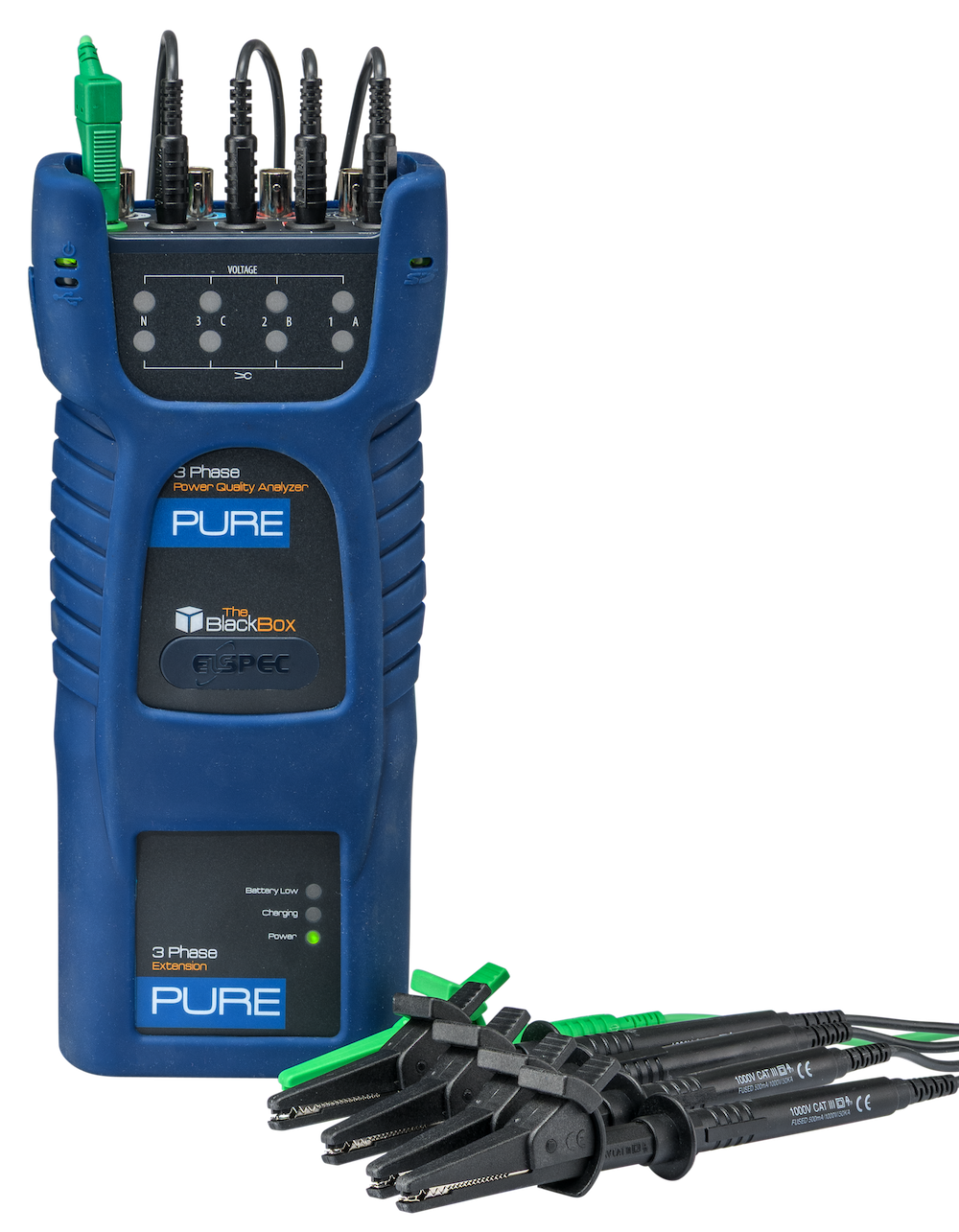

Elspec power quality analyzers take power quality monitoring to a new level.  The analyzers are equipped with the revolutionary Elspec PQZIP compression patented algorithm.  This algorithm enables the Elspec power quality analyzer series to measure, store and analyze waveform signals continually at a sampling rate of up to 1024 samples per cycle. This ensures power quality data is recorded without the need to set any trigger or threshold and provides unlimited pre and post trigger measurements. The Elspec analyzers far surpass the highest industry standards and comply with IEC 61000-4-30 Class A.

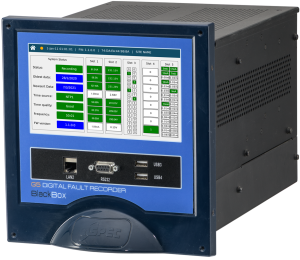

The Elspec multi-functional digital fault recorders are equipped with Elspec’s unique integrated PQZIP technology. They comply with IEC 61850 MMS, GOOSE (Generic Object-Oriented Substation Event) messaging and Sampled Values (SV) and surpass IEC 61000-4-30 Class A requirements.  The Elspec G5DFR continuously records and stores all waveform signals at a sampling rate of up to 1024 samples per cycle thanks to the patented PQZIP compression algorithm.  This enables data analysis to be made at any time.

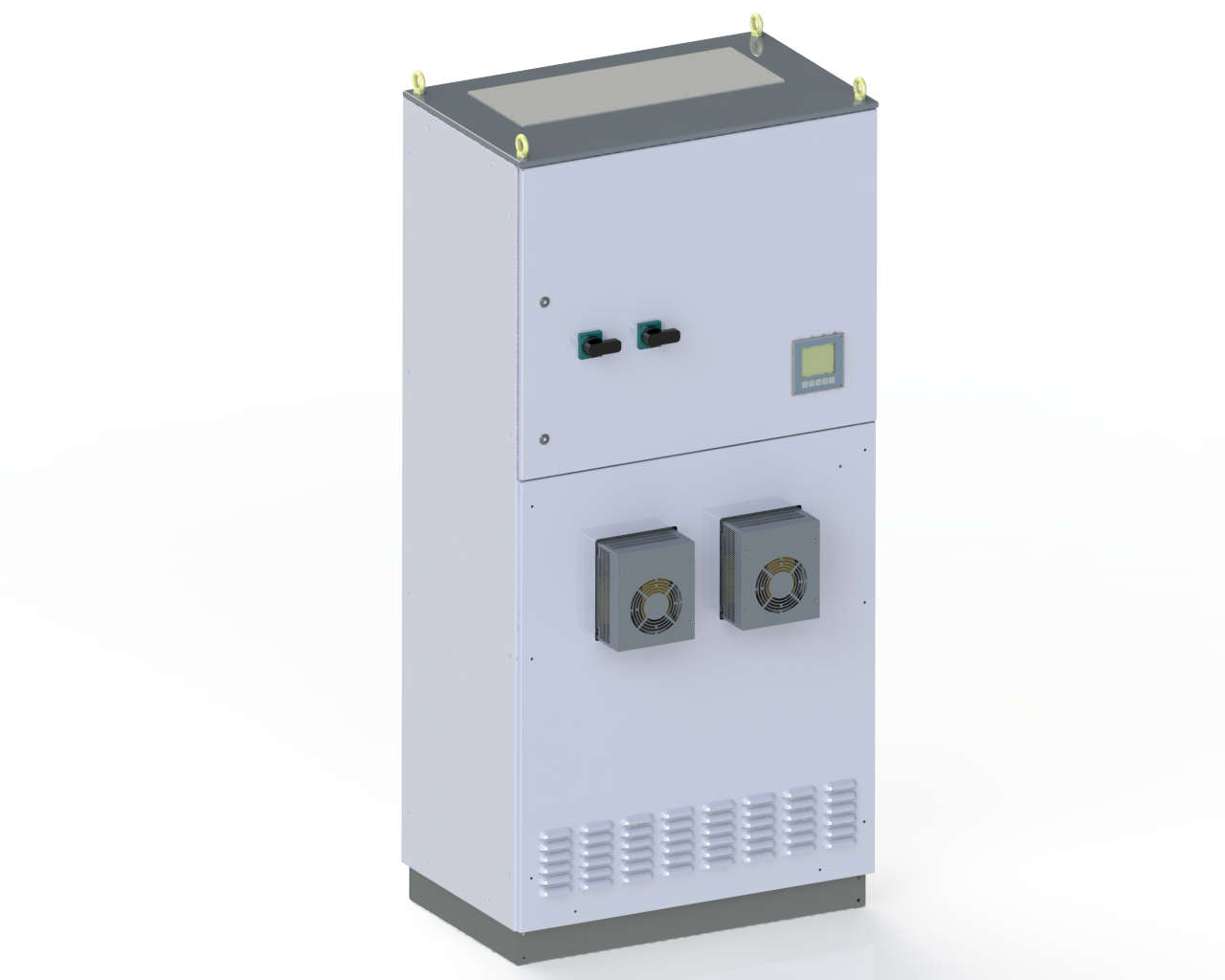

The Elspec Equalizer RT is a real-time high performance power quality solution designed to deliver substantial reactive power during a Fault Ride Through (FRT) or Voltage Ride Though (VRT) event where a very deep voltage sag occurs on the electrical network.  This fault ride through solution provides a boost to the  supplied kVAr during electrical grid voltage dips and has an ultra fast acquisition time which can fully compensate for the voltage sag within less than 10 milliseconds.  The Elspec Equalizer RT makes a transient free connection of capacitors in a Voltage Control operational mode and is optimised to fulfil the Grid Code requirements, such as Spain’s PO12.3, and grid regulations that define the technical and operational conditions for power generating facilities like solar PV and wind farms.
